Discover Vial
Thawing Systems
Precision cell vial thawing systems
The ThawSTAR® Automated Thawing System replaces non-standardized manual methods of thawing samples with controlled thaw rates. ThawSTAR can be leveraged early in the R&D phase, scaled into commercial manufacturing and implemented at the end point of use.
Several factors including cell size and choice of cryopreservation media can affect the optimal thawing profile, viability, and function. Additional thawing algorithms can be optimized for your specific application by a BioLife Solutions technical expert to ensure that the optimal thaw rate and cell health is achieved.
ThawSTAR Vial Thawing Systems
ThawSTAR Vial Thawing Systems can be beneficial to many different types of biotech and cell therapy organizations. Eurofins DiscoverX® is a trusted drug discovery and development solutions provider. BioLife Solutions and Eurofins DiscoverX collaborated on a case study to discuss how the ThawSTAR system provided their Cell Services laboratory efficient, sterile and consistent thawing results.
ThawSTAR® CFT
The ThawSTAR CFT vial thawing systems produce sensor-based thawing algorithms designed to deliver consistent thawing outcomes and will accommodate 1.5 – 2.0 mL cryogenic vials.
ThawSTAR® CSV
The new ThawSTAR CSV vial thawing systems provide the same precise water-free thawing experience as the CFT and AT product lines, but were designed specifically for 2.0 and 5.0 mL CellSeal® Vials.
ThawSTAR® AT
The ThawSTAR AT vial thawing systems are compatible with Aseptic Technologies (AT) vials 1.0, 2.0, 6.0, and 10.0 mL for closed-system processing.
How can we help you?
Get in touch
BioLife Solutions Inc.
3303 Monte Villa Parkway,
Suite 310, Bothell , WA 98021 USA
For assistance, please call us Monday
through Friday (9:00 am to 5:00 pm PST) at:
Toll Free (North America): +1.866.424.6543
Direct: +1.425.402.1400
Fax: +1.425.402.1433

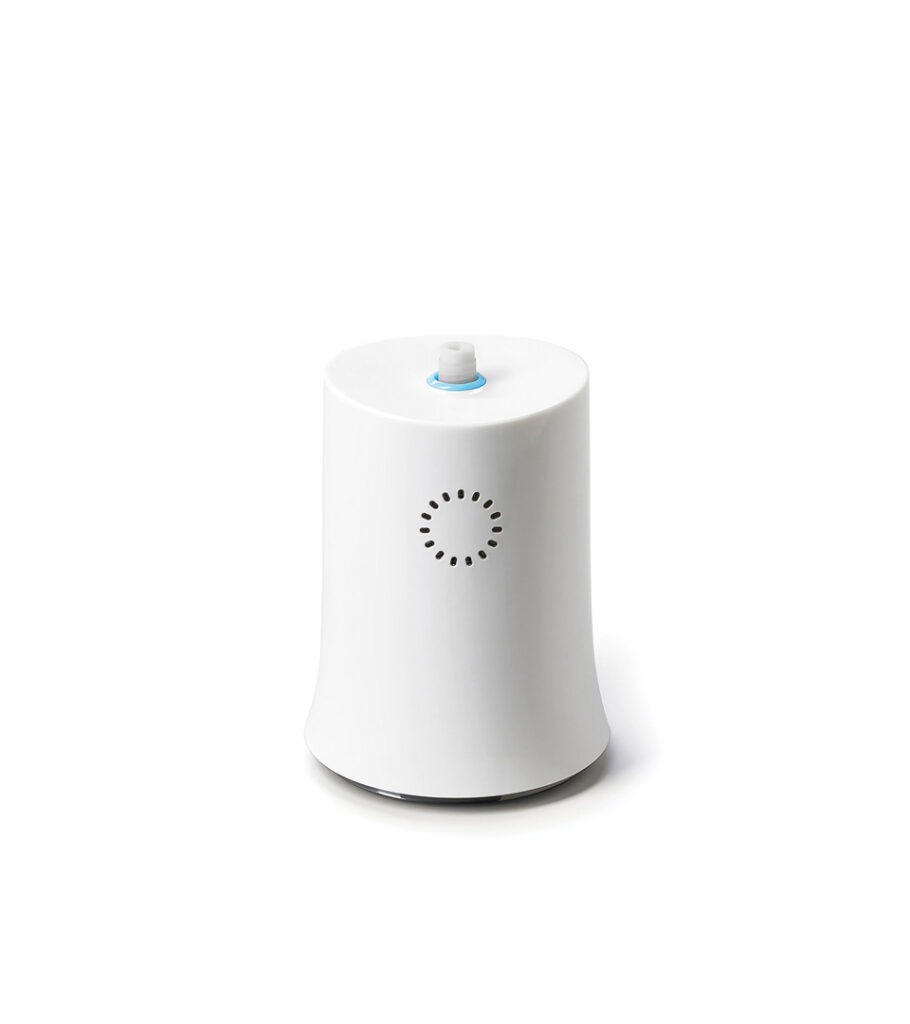

ThawSTAR CFT water-free thawing system designed with precision in mind.
ThawSTAR CFT Automated Thawing Systems provide standardized and reproducible thawing of cell therapy vials, replacing manual water baths.
- Compatible with many 1.5 mL – 2.0 mL commercially available cryogenic vials
- One vial at a time
- Thawing time <3 minutes
- 11.0 cm x 14.5 cm (4.3 in x 5.7 in) D x H
- Input/output voltage: AC 100 -240V, 50-60 Hz/12V DC, 5.0 A
- CE mark (IEC61326 and IEC61010), RoHS, WEEE
- Power rating: 12V DC, 3.0 A
- CFT1.5 Recommended fill volume: 0.8 mL – 1.5 mL
- CFT2 Recommended fill volume: 1.0 mL – 2.0 mL
- ThawSTAR Systems can be part of a qualifiable operation, scalable across multiple point of use facilities.
- Compatible with many 1.5mL – 2.0mL commercially available cryogenic vials
- One vial at a time
- Thawing time <3 minutes
- 11.0cm x 14.5cm (4.3in x 5.7in) D x H
- Input/output voltage AC 100 -240V, 50-60Hz/12V DC, 5.0 A
- CE mark (IEC61326 and IEC61010), RoHS, WEEE
- Power rating: 12V DC, 3.0 A
- ThawSTAR Systems can be part of a qualifiable operation, scalable across multiple point of use facilities.
Please download ThawSTAR CFT Vial Thawing resources here:
ThawSTAR CSV Automated Thawing System, designed for use with CellSeal® Vials
The same precise, water-free thawing system designed for use with ANY CellSeal vial, including: CellSeal® Connect Vials and CellSeal® Cryogenic Vials.
- Compatible with 2.0 mL and 5.0 mL CellSeal vials
- One vial at a time
- Thawing time: <3 minutes
- Dimensions: 10.9 cm x 14.5 cm (4.3 in x 5.7 in) D x H
- Input/output voltage: AC 100 – 240V, 50-60 Hz/12V DC, 5.0 A
- CE mark (IEC61326 and IEC61010), RoHS, WEEE
- Power Rating: 12V DC, 3.0 A
- Recommended Fill Volumes (2.0 mL vial): 1.0 – 2.0 mL
- Recommended Fill Volumes (5.0 mL vial): 2.5 – 5.0 mL
- ThawSTAR Systems can be part of a qualifiable operation, scalable across multiple point of use facilities.
Please download ThawSTAR CSV Vial Thawing resources here:
ThawSTAR AT Thawing System is compatible with AT Closed Vials®
If using Aseptic Technologies (AT) vials as part of a closed-system process, consider the ThawSTAR AT series for a precise, automated, water-free thawing alternative to water baths.
- Compatible with 1.0 mL, 2.0 mL, 6.0 mL or 10.0 mL AT vials
- Thaw one vial at a time
- Thawing time: Approx. 3 – 8 minutes, varies by vial size
- Dimensions: 11.0 cm x 14.5 cm (4.3 in x 5.7 in) D x H
- Input/output voltage: AC 100 -240V, 50-60 Hz/12V DC, 5.0 A
- CE mark (IEC61326 and IEC61010), RoHS, WEEE
- Power Rating: 12V DC, 3.0 A
- ThawSTAR AT1 Recommended Fill Volumes: 1.0 mL
- ThawSTAR AT2 Recommended Fill Volumes: 0.5 mL – 2.0 mL
- ThawSTAR AT6 Recommended Fill Volumes: 2.0 mL – 5.0 mL
- ThawSTAR AT10 Recommended Fill Volumes: 4.0 mL – 8.0 mL
- ThawSTAR Systems can be part of a qualifiable operation, scalable across multiple point of use facilities.
Please download ThawSTAR AT Vial Thawing resources here:
ThawSTAR® CFT Transporter
Comprised of an outer insulative foam lid and base, and an internal round CFT2 Core that accommodates up to five 1.8 or 2.0 mL (CFT2), or five 1.5 mL (CFT1.5) cryogenic vials.
Prior to using the ThawSTAR® CFT Transporter, a thin layer of dry ice is added to the bottom of the base. The round CFT2 Core is placed over the dry ice and allowed to equilibrate to dry-ice temperature (approximately 20 minutes). Frozen vial is then extracted from storage and quickly placed into the module. The lid is placed securely on top of the base and all samples are maintained at dry ice temperature until transported to the thawing location.
ThawSTAR® AT Transporter
Comprised of an insulative foam base and lid, and an AT Core that accommodates six 2.0 mL, 6.0 mL or 10.0 mL AT-Closed Vials®.
ThawSTAR® AT Transporter is a portable solution for handling and transporting frozen cell therapy vials from long-term storage in vapor phase liquid nitrogen or in a -80°C freezer to downstream thawing along with the ThawSTAR AT Automated Thawing System.
ThawSTAR® CFT2
IOPQ Packet
Qualification documentation and testing accessories based on GxP industry standards and the GAMP® 5 methodology.
Contents include:
- Comprehensive documentation makes therapeutic cell thawing easy to authenticate
- Testing accessories included with Qualification Packet
- Step-by-Step IOPQ protocol and report templates for thawing in a controlled environment
